Airpel-AB – MAB24

Item Number -

  • Available Stroke in mm

  • *Cylinder Action

    *Mounting

    *Push Rod End

    Reset options
3D Configurator
SKU: N/A Categories: ,
Description
Airpel-AB – MAB24 – General Technical Specifications

Piston Diameter
24.0 mm

Piston Area
452 mm²

Max. Output Force
316.6 N

Max. Pressure
700 kPa (7 bar)

Min. Pressure for Horizontal Cylinder
Note: The minimum pressure may be
lower for pistons with short stroke
due to the lower rod mass.

150 kPa

Min. Pressure for Vertical Cylinder
30 kPa

Max. Leak Rate at 0.2 MPa
9 (Standard l/min)

Typical Leak Rate at 0.2 MPa
6 (Standard l/min)

Temperature Range
-20 °C to +90 °C

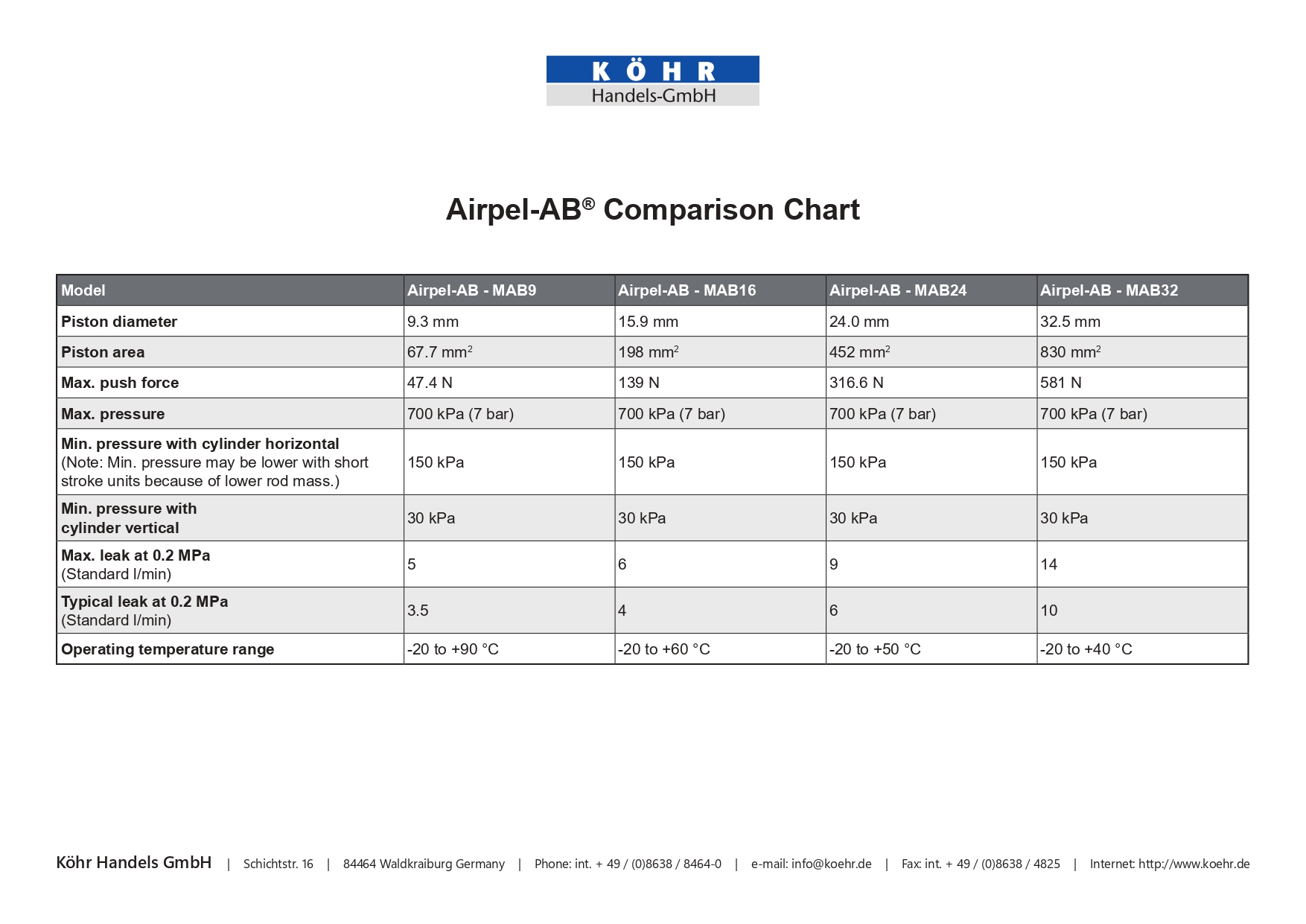

Comparison Table

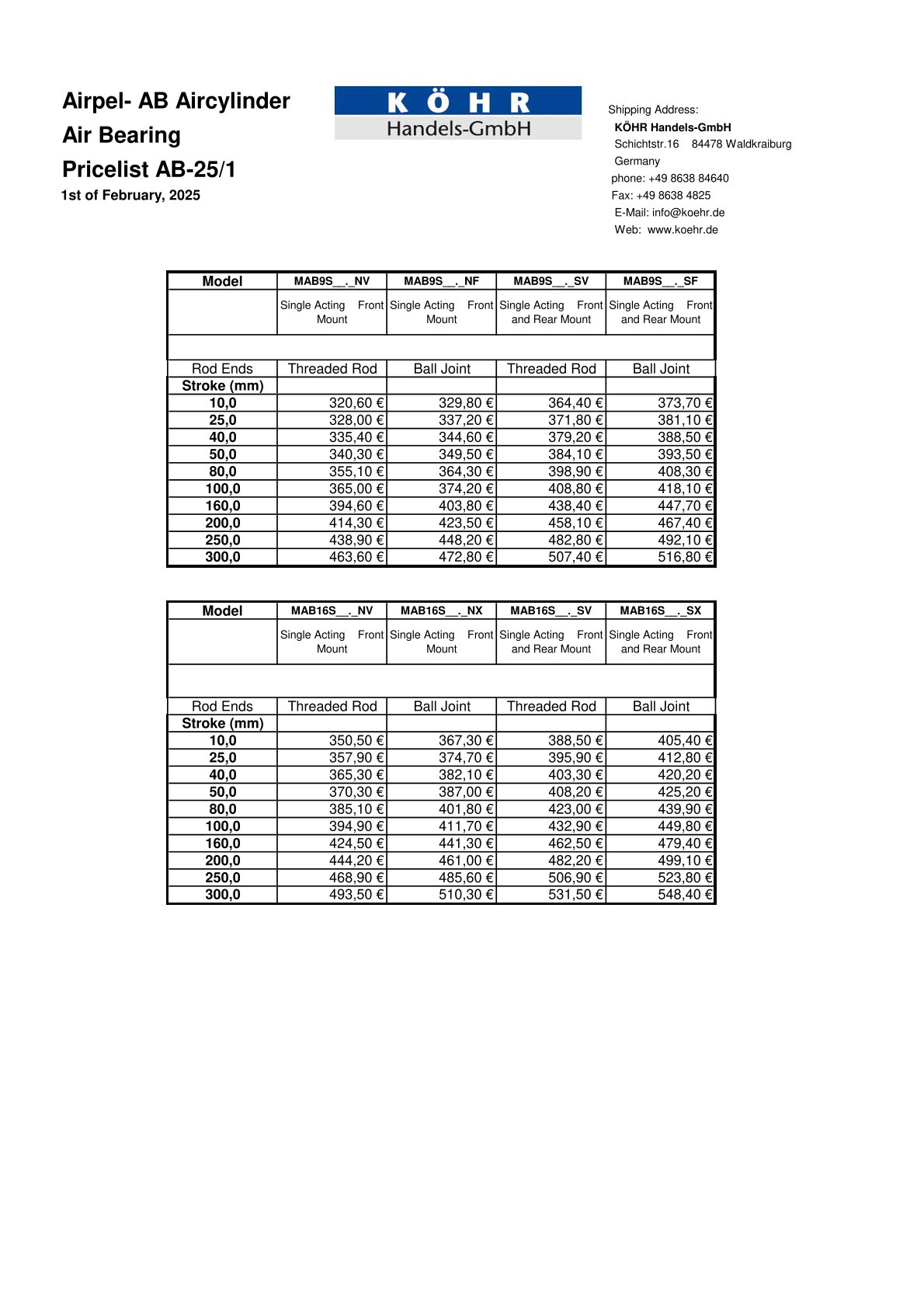

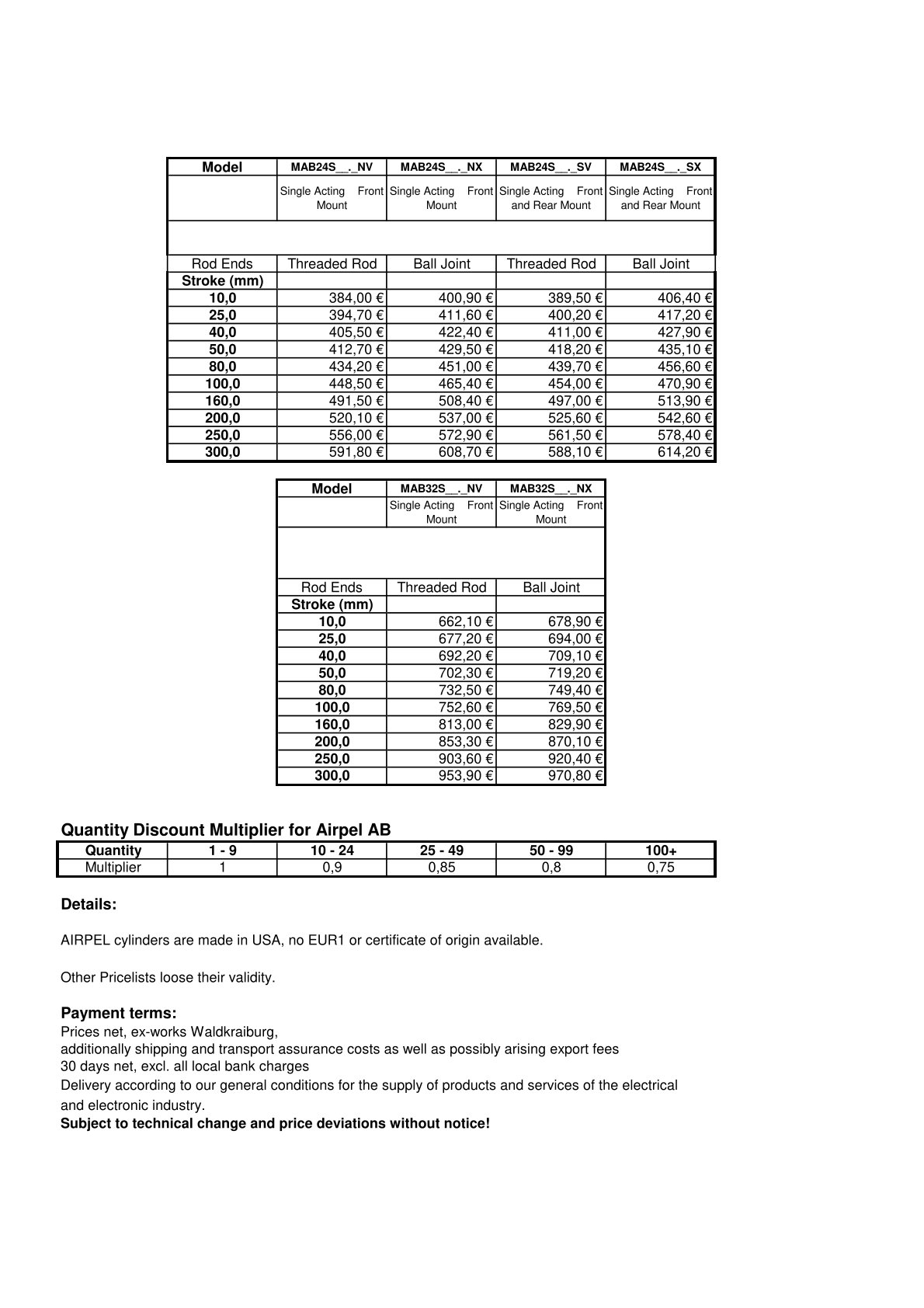

Price List
