Airpot – 2KS95
Item Number
-
Description
Airpot 2KS95 – General Technical Specifications
Piston Diameter
0.366 Inch / 9.3 mm
Force Required for a Stroke of 1 Inch / 3 Inch
Pull Force (lbf): 0.64 / 2.2
Push Force (lbf): 0.80 / 4.2
Push Force (lbf): 0.80 / 4.2
Temperature Range
–55 to +150 °C
Stroke in Inch (Standard)
0.5, 1.0, 1.5, 2.0
Damping Factor
lbf-in/sec
0 – 2
0 – 2
Weight of Fixed Components in g
(Cylinder, Base, etc.)
2.9 × Stroke + 8.9
2.9 × Stroke + 8.9
Stroke in mm (Standard)
12.7, 25.4, 38.1, 50.8
Friction Factor
0.2
Weight of Moving Components in g
(Piston and rod)
0.4 × Stroke + 2.8
0.4 × Stroke + 2.8
Max. Pull Force Direction
1.4 lbf / 6.228 N
Piston Friction in g
(without lateral force input)
<1
<1
Max. Push Force Direction
1 lbf / 4.448 N

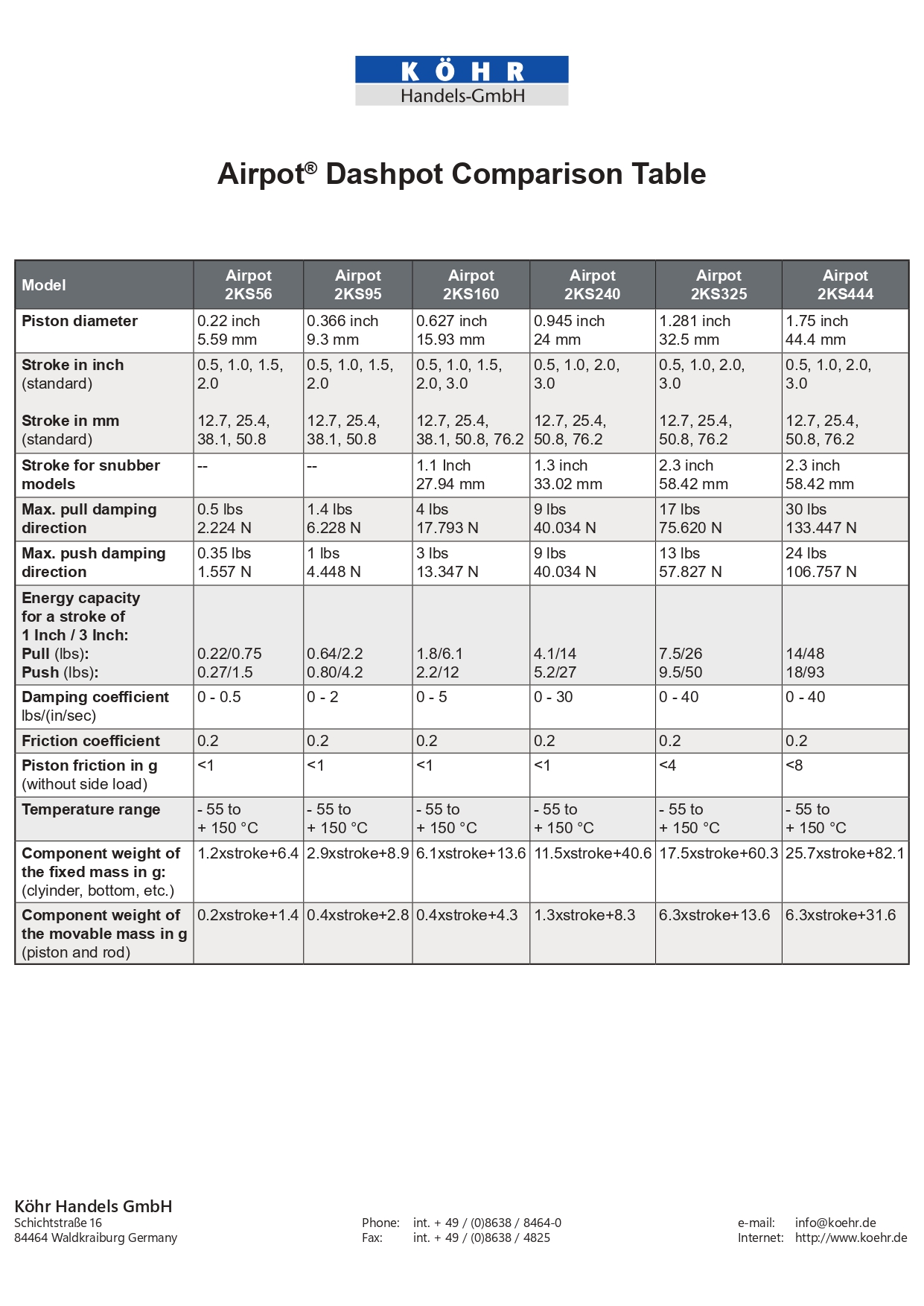

Comparison Table

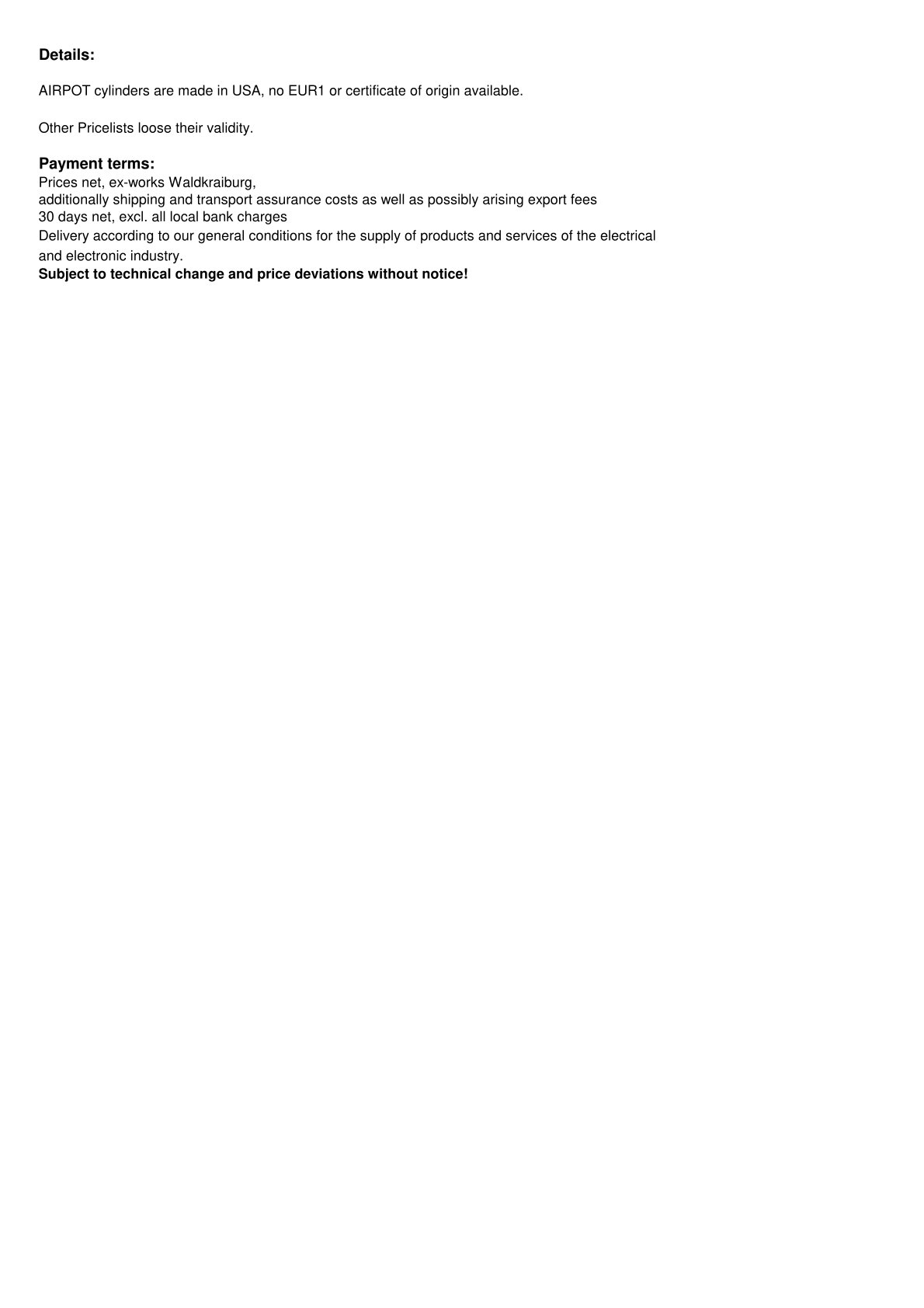

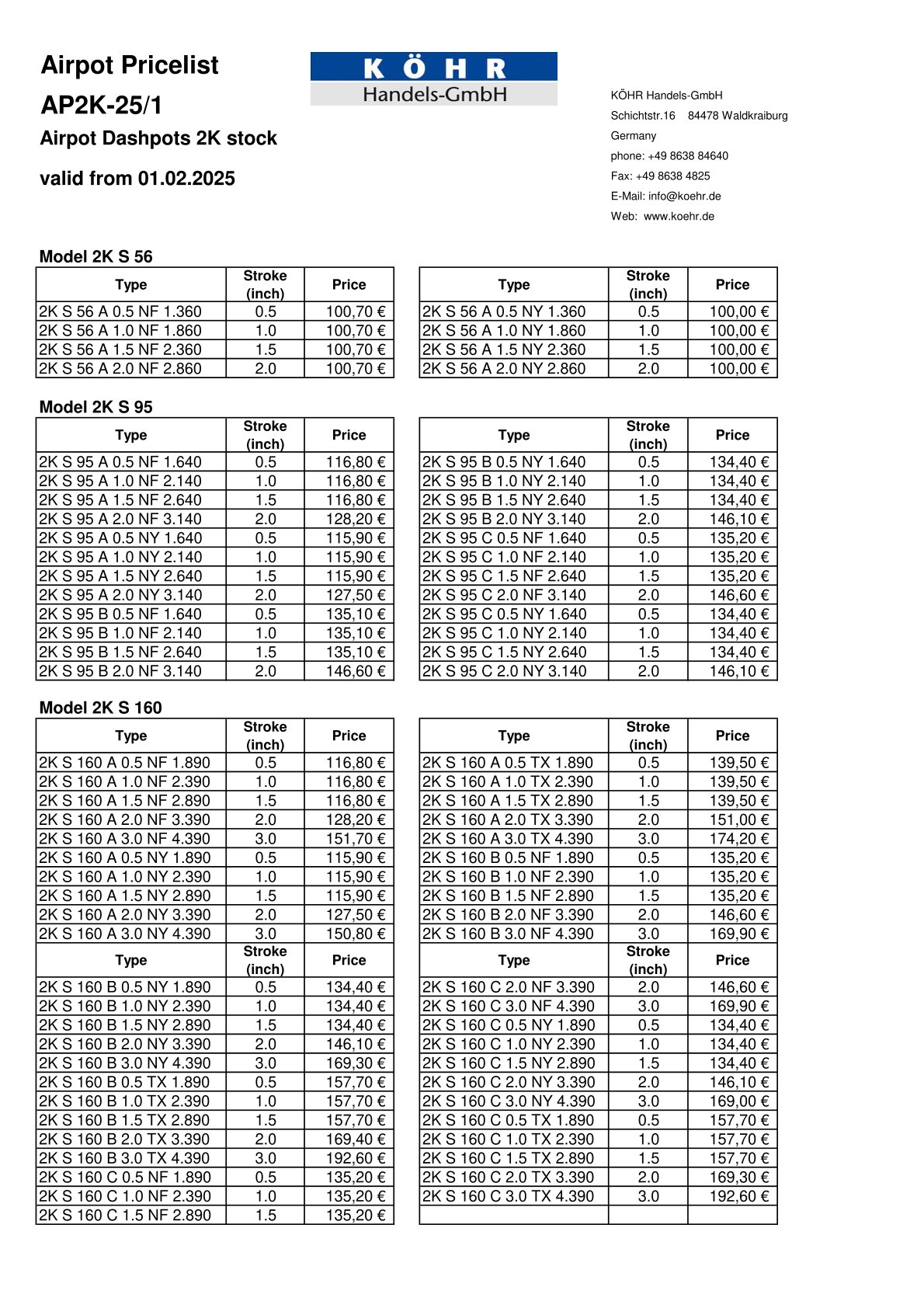

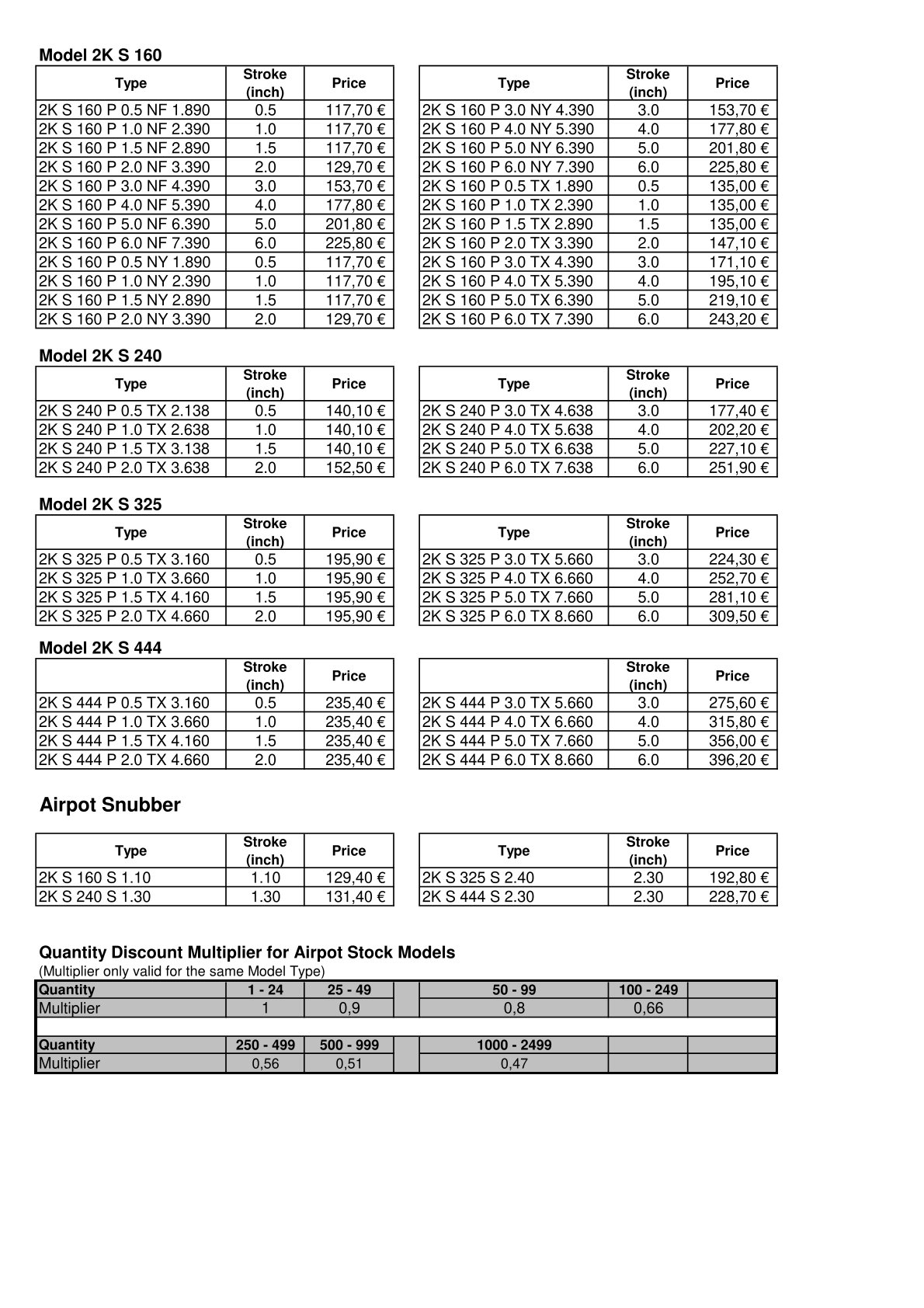

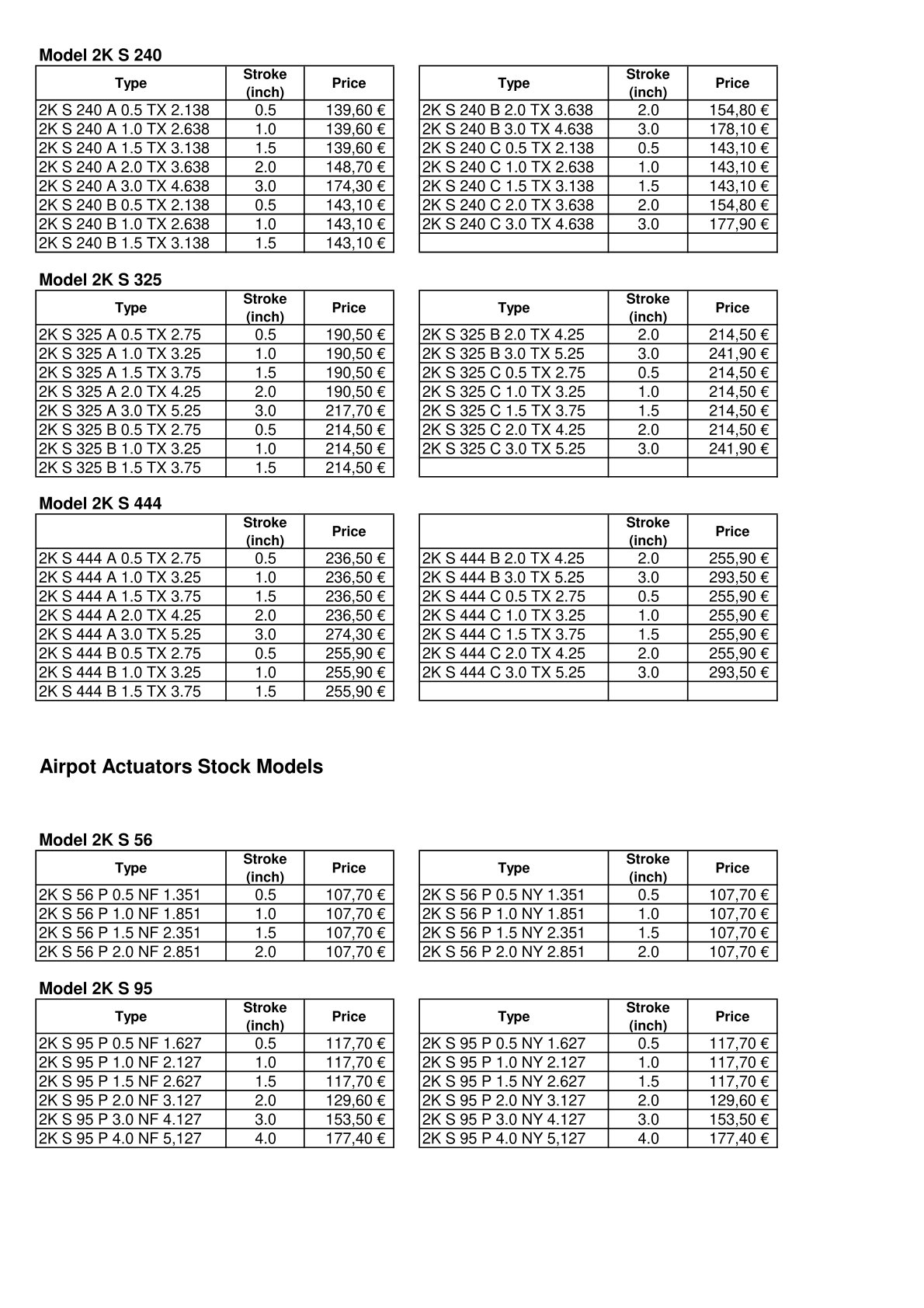

Price List
